[cka] Rolling Updates and Rollbacks



1. We have deployed a simple web application. Inspect the PODs and the Services

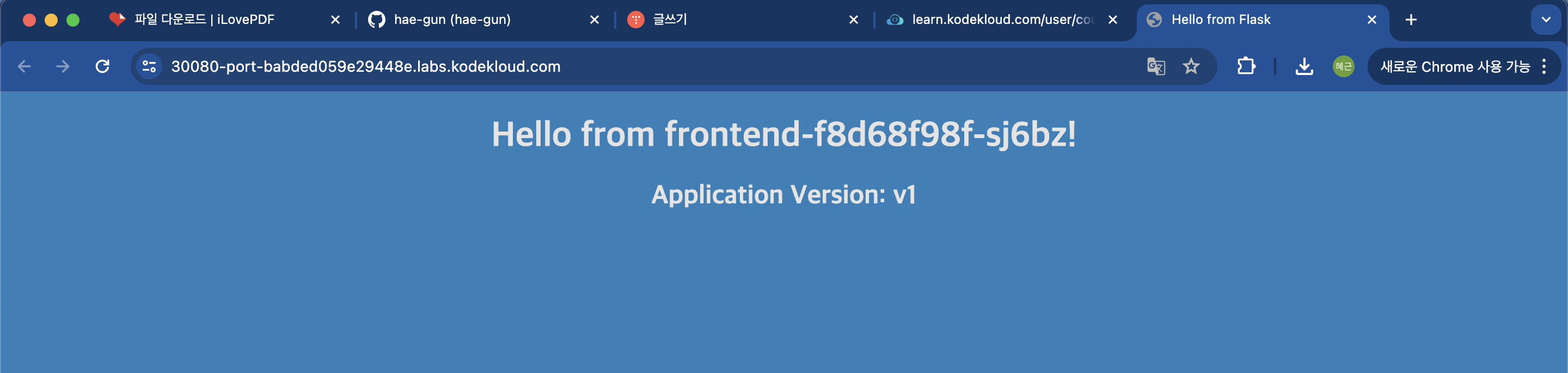

Wait for the application to fully deploy and view the application using the link called Webapp Portal above your terminal.



2. What is the current color of the web application? Access the Webapp Portal.

blue

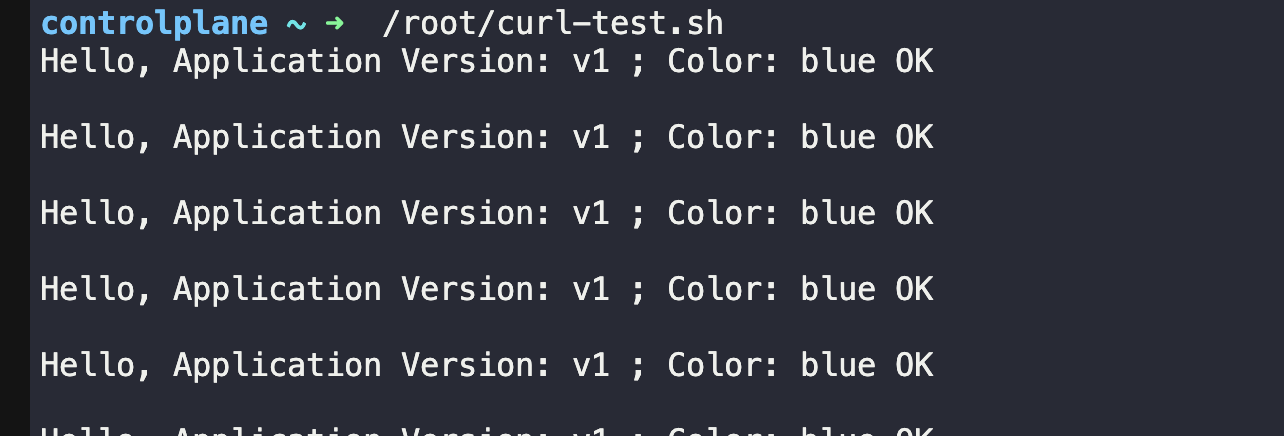

3. Run the script named curl-test.sh to send multiple requests to test the web application. Take a note of the output.
Execute the script at /root/curl-test.sh.



4. Inspect the deployment and identify the number of PODs deployed by it



controlplane ~ ➜  k get deployments.apps
NAME       READY   UP-TO-DATE   AVAILABLE   AGE
frontend   4/4     4            4           5m7s



answer : 4



5. What container image is used to deploy the applications?



controlplane ~ ➜  k describe deployments.apps frontend
Name:                   frontend
Namespace:              default
CreationTimestamp:      Tue, 02 Jul 2024 14:13:59 +0000
...
Pod Template:
  Labels:  name=webapp
  Containers:
   simple-webapp:
    Image:         kodekloud/webapp-color:v1
    Port:          8080/TCP
    Host Port:     0/TCP
    Environment:   <none>
    Mounts:        <none>
  Volumes:         <none>
  Node-Selectors:  <none>
  Tolerations:     <none>
...



answer : kodekloud/webapp-color:v1



6. Inspect the deployment and identify the current strategy

controlplane ~ ➜  k describe deployments.apps frontend
...
RollingUpdateStrategy:  25% max unavailable, 25% max surge
...



answer : RollingUpdate



7. If you were to upgrade the application now what would happen?



answer : PODs are upgrades few at a time





8. Let us try that. Upgrade the application by setting the image on the deployment to kodekloud/webapp-color:v2
Do not delete and re-create the deployment. Only set the new image name for the existing deployment.



controlplane ~ ➜  k edit deployments.apps frontend

###
apiVersion: apps/v1
kind: Deployment
metadata:
  annotations:
    deployment.kubernetes.io/revision: "2"
  creationTimestamp: "2024-07-02T14:13:59Z"
  generation: 2
...
  strategy:
    rollingUpdate:
      maxSurge: 25%
      maxUnavailable: 25%
    type: RollingUpdate
  template:
    metadata:
      creationTimestamp: null
      labels:
        name: webapp
    spec:
      containers:
      - image: kodekloud/webapp-color:v1 ## 변경 kodekloud/webapp-color:v2
        imagePullPolicy: IfNotPresent
        name: simple-webapp
...



9. Run the script curl-test.sh again. Notice the requests now hit both the old and newer versions. However none of them fail. Execute the script at /root/curl-test.sh.



controlplane ~ ➜  /root/curl-test.sh
Hello, Application Version: v1 ; Color: blue OK

Hello, Application Version: v1 ; Color: blue OK

Hello, Application Version: v1 ; Color: blue OK

Failed

Failed

Failed

Failed

Failed

Hello, Application Version: v3 ; Color: red OK

Hello, Application Version: v3 ; Color: red OK
Hello, Application Version: v2 ; Color: green OK

Hello, Application Version: v2 ; Color: green OK

Hello, Application Version: v2 ; Color: green OK





10. Up to how many PODs can be down for upgrade at a time
Consider the current strategy settings and number of PODs - 4



RollingUpdate -> Pod 를 한개씩 업데이트 시키고 업데이트 완료시 이전 버전 1개를 종료시킨다.



answer : 1



11.  Change the deployment strategy to Recreate
Delete and re-create the deployment if necessary. Only update the strategy type for the existing deployment.



apiVersion: apps/v1
kind: Deployment
metadata:
  annotations:
    deployment.kubernetes.io/revision: "2"
  creationTimestamp: "2024-07-02T14:13:59Z"
  generation: 3
  name: frontend
  namespace: default
  resourceVersion: "1376"
  uid: 1f743bc7-9710-4f83-b243-7901fb2bd370
spec:
  minReadySeconds: 20
  progressDeadlineSeconds: 600
  replicas: 4
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      name: webapp
  strategy:
    type: RolllingUpdate ## Recreate 로 변경
  template:



12. Upgrade the application by setting the image on the deployment to kodekloud/webapp-color:v3

Do not delete and re-create the deployment. Only set the new image name for the existing deployment.

controlplane ~ ➜  k edit deployments.apps frontend

###
apiVersion: apps/v1
kind: Deployment
metadata:
  annotations:
    deployment.kubernetes.io/revision: "2"
  creationTimestamp: "2024-07-02T14:13:59Z"
  generation: 2
...
  strategy:
    rollingUpdate:
      maxSurge: 25%
      maxUnavailable: 25%
    type: RollingUpdate
  template:
    metadata:
      creationTimestamp: null
      labels:
        name: webapp
    spec:
      containers:
      - image: kodekloud/webapp-color:v2 ## 변경 kodekloud/webapp-color:v3
        imagePullPolicy: IfNotPresent
        name: simple-webapp
...







13.  Run the script curl-test.sh again. Notice the failures. Wait for the new application to be ready. Notice that the requests now do not hit both the versions
Execute the script at /root/curl-test.sh.



Hello, Application Version: v2 ; Color: green OK

Hello, Application Version: v2 ; Color: green OK

Failed

Failed

Failed

Failed

Failed

Hello, Application Version: v3 ; Color: red OK

Hello, Application Version: v3 ; Color: red OK
